TOUCH11/PC

Products > Terminals, displays, panel PC > Terminals with touch

Operator panel with 5,7" LCD colour display, designed for industrial usage

Operator panel

5,7"LCD colour display, 640x480 pixels

262 144 colours

Analog resistive touch screen

Processor AMD Geode LX800/500MHz

Operating memory 256MB

Compact Flash 512MB

Ethernet 1Gbit/s

Panel side protection IP65

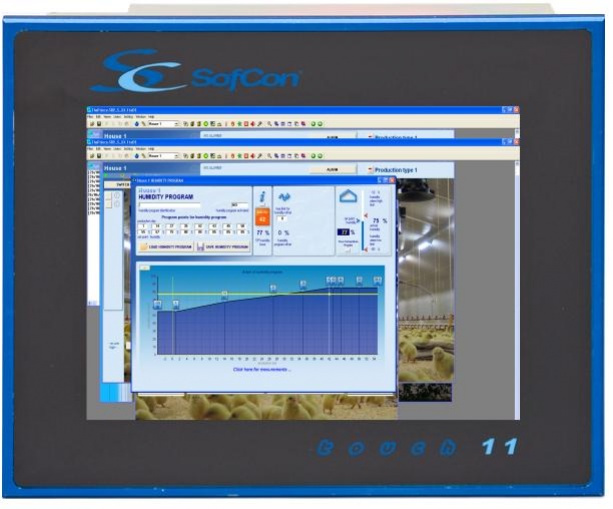

TOUCH11/PC is a small operator panel, designed for visualisation of technological processes, for data collecting and as a graphical interface "man-machine".

The operator panel's base consists of processor board with integrated peripheries (VGA, 2xRS232, 4xUSB, ETHERNET, 1xLPT, 1xPS2 (keyboard and mouse), 1xIRDA 115 kb/s, audio), with AMD GEODE LX800 processor, RAM 256MB or higher and CompactFlash 512MB or higher. LCD display has 5,7" diagonal, 640x480 pixels resolution and white LED backlight. The display is completed with an analog resistant touch screen.TOUCH11/PC built into a metal cover with the front-side protection IP65 and the rear-side protection IP20. On the side of the panel are connectors for communication RS232, 2x USB and Ethernet and audio output and supply connector. TOUCH11/PC is supplied with operating system XP Embedded.

Files to download

	06_21_TOUCH11PC_EN	06_21_TOUCH11_PC_en.pdf	English	101.5 kB
	touch_11_pc	touch_11_pc.jpg	Čeština	44.8 kB
